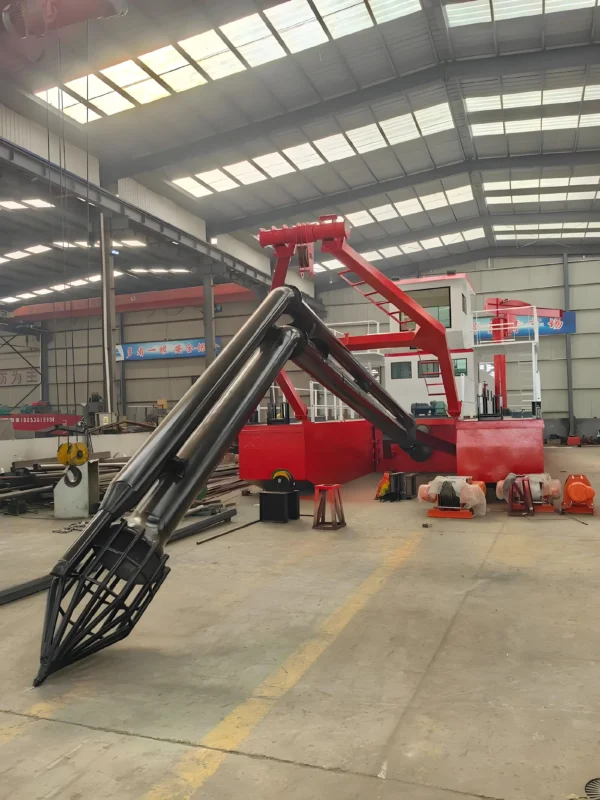

12-Inch Straight-Arm Jet Suction Dredger

14-Inch Straight-Arm Jet Suction Dredger

¥300,000.00

14-Inch Straight-Arm Jet Suction Dredger As a key professional floating sand extraction and dredging equipment for waterway dredging, sand mining

Category: Tags: , , , , , , , , Brand:

14-Inch Straight-Arm Jet Suction Dredger

14-Inch Straight-Arm Jet Suction Dredger As a key professional floating sand extraction and dredging equipment for waterway dredging, sand mining, reservoir desilting, and port maintenance, the14-Inch Straight-Arm Jet Suction Dredger is widely used in rivers, lakes, reservoirs, ports, coastal shallow areas, and artificial lakes that require efficient sand suction, dredging, and sediment cleaning operations. Facing harsh and complex working conditions such as variable water levels, shallow water, uneven sediment distribution, and mixed sand and gravel, traditional sand extraction equipment and single-function dredgers commonly suffer from low efficiency, poor sand suction capacity, high blockage rate, limited operation scope, and inability to adapt to dynamic water level changes. Our independently designed and manufactured 14-Inch Straight-Arm Jet Suction Dredger adopts an integrated structure of straight-arm adjustment, jet breaking, sand suction, conveying, and floating positioning, equipped with a high-efficiency 14-inch-specific jet suction sand pump system, adjustable straight-arm device, stable floating hull, and reliable power system. It integrates high sand suction efficiency, strong sediment breaking capacity, flexible straight-arm adjustment, wide adaptability, stable operation, environmental protection, and energy saving, and is specially designed for sand extraction, dredging, sediment cleaning, and channel improvement in various water areas, especially suitable for occasions where fixed sand extraction equipment is difficult to construct, water levels fluctuate greatly, and sediment depth varies. From shallow urban landscape lakes, large natural rivers to coastal shallow zones and reservoir areas, this 14-inch straight-arm jet suction dredger can operate safely and efficiently with flexible straight-arm adjustment, making it an indispensable core equipment for water conservancy dredging, sand mining projects, reservoir maintenance, and port improvement systems.
14-Inch Straight-Arm Jet Suction Dredger

Core Structure & Working Principle

The 14-inch straight-arm jet suction dredger adopts an integrated operation structure composed of a 14-inch dedicated jet suction sand pump system, high-pressure jet device, adjustable straight-arm device, conveying pipeline system, floating hull, power system, and positioning system, realizing one-stop completion of straight-arm adjustment, jet breaking, sand suction, conveying, floating positioning, and continuous operation, with specifications perfectly matched to the 14-inch design and straight-arm jet suction dredging functional requirements[1]. As a floating sand extraction and dredging equipment with a unique straight-arm structure, the 14-inch straight-arm jet suction dredger can flexibly adjust the height and depth of the suction pipe through the straight-arm device, adapt to dynamic water level changes and uneven sediment distribution, eliminate the need for complex underwater construction, and ensure efficient sand suction in different water depths and sediment thicknesses.

1. Jet Suction Sand Pump & Straight-Arm Device: 14-Inch Dedicated, Flexible & Wear-Resistant

The core sand extraction device is equipped with a 14-inch high-efficiency jet suction sand pump and a matching adjustable straight-arm device, both customized for the 14-inch straight-arm jet suction dredger’s overall size and floating working characteristics, matched with a high-pressure jet pump to form a complete straight-arm jet suction system[1]. The adjustable straight-arm device can flexibly lift and lower the suction pipe, adjust the suction depth according to sediment thickness and water level changes, and ensure that the suction head is always close to the sediment layer for efficient sand suction. The high-pressure jet pump sprays high-speed water flow to impact the underwater sediment layer, making the sand and sediment splash and suspend around the sand suction head, and then the jet suction sand pump sucks the suspended sand-silt mixture into the pump body through the straight-arm suction pipe. It can stably extract sand, silt, and small-grain gravel, adapt to various water depths (adjustable via the straight-arm device, matching the 14-inch straight-arm jet suction dredger’s draft), and has strong anti-clogging performance to avoid blockage by large debris. The 14-inch-specific jet suction sand pump has high lift, large sand suction flow, strong wear resistance and corrosion resistance, ensuring long-term stable operation under complex sediment conditions, with sand suction efficiency and flow rate perfectly matched to the vessel’s scale and dredging needs[2].

2. Conveying Pipeline System: Anti-Wear & Smooth, Matching 14-Inch Scale & Straight-Arm Design

The conveying pipeline adopts ahigh-pressure, wear-resistant and corrosion-resistant composite pipeline, matched with the 14-inch straight-arm jet suction dredger’s working efficiency, floating characteristics, and straight-arm adjustment function, which can stably convey the extracted sand-silt mixture to the target area (such as sand storage yards, filling areas, or designated discharge points). The integrated pipeline connection system, tailored to the 14-inch size, floating operation, and straight-arm adjustment, ensures smooth flow of sand-silt mixture without leakage or blockage, realizes continuous and efficient sand suction and conveying, and adapts to the vessel’s overall sand suction capacity, floating positioning needs, and flexible straight-arm adjustment requirements.

3. Hull & Deck Design: 14-Inch-Sized, Floating-Adapted, Stable & Reliable

The hull is made ofhigh-strength marine steel or optimized alloy plate, with a 14-inch-specific structural design and floating anti-sediment, anti-corrosion modification. It is designed as a floating barge structure, anchored by iron anchors, fixed cables and anchor piles to ensure stable positioning in water, with strong stability and anti-shaking performance even in fluctuating water levels, during sand suction operations, and when adjusting the straight-arm device. The reasonable deck layout, matched to the 14-inch straight-arm jet suction dredger’s size, facilitates the installation, maintenance, and operation of the straight-arm device, jet suction system, and other equipment, making it suitable for large-scale floating sand extraction and dredging tasks[1].

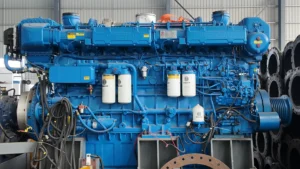

4. Power & Positioning System: Reliable & Maneuverable, Adapted to 14-Inch Straight-Arm Jet Suction Dredger

Equipped with a special marine diesel engine or electric motor, and a flexible floating positioning device, perfectly matched to the 14-inch straight-arm jet suction dredger’s weight and floating working needs, providing stable power for the jet suction sand pump system, high-pressure jet device, straight-arm adjustment mechanism, and flexible positioning capability. It can operate freely in shallow water, narrow waterways, and complex water areas with uneven sediment distribution, and can be quickly positioned and fixed in the target sand extraction area. The straight-arm device can be flexibly adjusted to adapt to different water depths and sediment thicknesses, with low energy consumption and strong reliability. It fully leverages the 14-inch size’s advantages of flexibility and maneuverability in floating water environments, adapting to dynamic water level changes and uneven sediment distribution effectively.

5. Control & Auxiliary System (Optional)

According to working conditions, the 14-inch straight-arm jet suction dredger can be equipped with:
  • Centralized console and human-machine interface, easy to operate even for single-person operation, supporting real-time monitoring of sand suction flow, lift, jet pressure, power parameters, and straight-arm height adjustment
  • Lighting system for day and night operation, expanding the 14-inch straight-arm jet suction dredger’s working scope in various water environments
  • Debris filtering device, preventing large floating garbage and gravel from entering the pump body and the straight-arm suction pipe, improving the service life of the 14-inch straight-arm jet suction dredger[1]
  • Movable pipeline connection device and flexible straight-arm adjustment mechanism, adapting to different water level changes, sediment thicknesses, and conveying distance requirements
  • Anti-corrosion, anti-fouling, and anti-wear treatment on the surface, key components, and straight-arm suction pipe, extending the 14-inch straight-arm jet suction dredger’s service life in harsh sediment and water environments

14-Inch Straight-Arm Jet Suction Dredger

Detailed Technical Specification Table

Parameter Category
Specification Details
Unit
Optional Range (14-Inch Straight-Arm Jet Suction Dredger)
Basic Information
Vessel Type
—
14-Inch Straight-Arm Jet Suction Dredger (Floating Sand Extraction & Dredging Vessel)
Main Purpose
—
Sand Suction, Dredging, Sediment Cleaning, Channel Improvement, Reservoir Desilting, Port Maintenance (Floating Operation with Straight-Arm Adjustment)[1]
Hull Material
—
Marine Grade Steel / Reinforced Alloy (Anti-Corrosion, Anti-Fouling & Anti-Wear Modification)
Working Performance (14-Inch Specific)
Jet Suction Pump Diameter
Inch
14 (Customizable for 14-inch scale, suitable for floating sand suction & dredging with straight-arm)[2]
Sand Suction Flow
m³/h
800–2200 (Shallow to medium water, adjustable according to sediment conditions and straight-arm height)[2]
Suction Depth (Adjustable via Straight-Arm)
m
1–12 (High-efficiency continuous operation, adjustable via straight-arm device, jet suction dredging mode)[2]
Pipeline Diameter (Including Straight-Arm Suction Pipe)
Inch
14–16 (Matching 14-inch jet suction pump, for stable sand-silt conveying, including straight-arm suction pipe)
Straight-Arm Adjustment Range
m
0.6–6.0 (Flexible adjustment according to water level and sediment thickness)
Power & Positioning
Engine Power
kW / HP
280–480 (Customizable for 14-inch size, supporting jet suction, dredging & straight-arm operation)[2]
Travel Speed
km/h
3.5–9 (Flexible maneuvering for 14-inch straight-arm jet suction dredger)
Positioning Method
—
Iron Anchor + Fixed Cable + Anchor Pile (Stable positioning during sand suction, dredging & straight-arm adjustment)
Draft
m
0.7–1.4 (Suitable for shallow water, 14-inch-specific, adapting to sediment areas and straight-arm adjustment)
Environment Adaptability
Applicable Area
—
Rivers, Lakes, Reservoirs, Ports, Coastal Shallow Zones, Artificial Lakes, Channel Desilting Areas (Adaptable to fluctuating water levels via straight-arm)[1]
Corrosion & Wear Resistance
—
Marine anti-corrosion & anti-fouling treatment, key components and straight-arm suction pipe with anti-wear modification, suitable for various sediment and water quality[1]
Continuous Working Time
h
8–24 (Long endurance for 14-inch straight-arm jet suction dredger)
Certification & Warranty
Implementation Standard
—
Marine Safety, Environmental Standards & Straight-Arm Jet Suction Dredging Equipment Standards
Warranty Period
Month
6–20 months (According to working conditions, sediment intensity and straight-arm device usage)

14-Inch Straight-Arm Jet Suction Dredger

Core Technical Advantages of 14-Inch Straight-Arm Jet Suction Dredger

1. Integrated Straight-Arm & Multi-Function Design, 14-Inch-Specific Efficiency

Realizes one-key completion of straight-arm adjustment, jet breaking, sand suction, conveying, positioning, and continuous operation, tailored to the 14-inch scale and floating characteristics[1]. The unique straight-arm device is the core advantage, which can flexibly adjust the suction depth according to water level changes and sediment thickness, ensuring efficient sand suction in different working conditions. It can handle sand suction, dredging, and sediment cleaning tasks in various water areas, truly multi-purpose in one vessel, perfectly adapting to large-scale floating sand extraction and dredging projects. As a floating dredging equipment with straight-arm function, it can adapt to dynamic water level changes and uneven sediment distribution, avoiding the limitations of fixed sand extraction equipment and ordinary jet suction dredgers without straight-arm function.

2. 14-Inch Dedicated Straight-Arm Jet Suction System, High Efficiency & Strong Adaptability

The 14-inch high-efficiency jet suction system (composed of jet pump, sand pump, and adjustable straight-arm device) adapts to various sediment conditions, including sand, silt, and small-grain gravel. The straight-arm device can flexibly adjust the suction depth (1–12m) and height, ensuring the suction head is always close to the sediment layer, greatly improving sand suction efficiency. It works stably in different water depths (0.7–1.4m draft) and fluctuating water levels, with high sand suction efficiency, large flow, and low failure rate, leveraging the 14-inch size’s balance of power and flexibility in floating water environments[2]. The jet breaking function effectively loosens compact sediment, and the straight-arm adjustment ensures full contact between the suction head and sediment, which is the core advantage of straight-arm jet suction dredgers compared to ordinary jet suction dredgers and sand pumps[1].

3. Flexible Straight-Arm Adjustment, Wider Operation Scope (14-Inch Advantage)

Adopting a floating hull, reliable positioning device, and flexible straight-arm adjustment mechanism, the 14-inch straight-arm jet suction dredger can freely move and fix in various water areas, including shallow water, narrow channels, and areas with uneven sediment distribution and fluctuating water levels. The straight-arm device has a 0.6–6.0m adjustment range, which can adapt to dynamic water level changes (＞12m water level variation) and different sediment thicknesses, and work in areas where fixed sand extraction equipment and ordinary jet suction dredgers are difficult to construct. It can be quickly deployed to the target sand extraction area, and the straight-arm device can be adjusted in real time according to on-site conditions, adapting to different sediment distribution scenarios flexibly[1].

4. Wear-Resistant & Corrosion-Resistant, Long Service Life, Cost-Effective for 14-Inch Scale

Key components such as 14-inch-specific jet suction sand pumps, high-pressure jet devices, conveying pipelines, straight-arm suction pipes, and hull adopt wear-resistant, anti-corrosion, and anti-fouling materials. The straight-arm suction pipe is specially treated with anti-wear and anti-clogging modification, adapting to long-term contact with sediment. The whole vessel adopts professional marine anti-corrosion and anti-wear treatment, extending service life and reducing maintenance costs, making it more cost-effective for large-scale floating sand extraction and dredging operations. It has strong durability, adapting to complex sediment environments like professional export dredging equipment.

5. Easy Operation & High Safety, Suitable for 14-Inch Straight-Arm Jet Suction Dredger Operation

Humanized centralized control system is simple to learn and operate, even for single-person operation, supporting real-time monitoring of sand suction flow, jet pressure, power parameters, and straight-arm height adjustment. The straight-arm adjustment is flexible and convenient, realizing one-key lifting and lowering, reducing labor intensity. The 14-inch straight-arm jet suction dredger runs smoothly with low noise and environmental protection, meeting the requirements of ecological protection areas and urban landscape waterways. It is easy to operate and maintain, ensuring safe and stable operation.

6. Fully Customizable Configurations, Matching 14-Inch Straight-Arm Jet Suction Dredger Needs

We provide customized design according to customer needs for the 14-inch straight-arm jet suction dredger:
  • Sand suction flow (800–2200m³/h) and suction depth (1–12m, adjustable via straight-arm) adjustment[2]
  • Pipeline diameter (14–16 inch) and length customization, straight-arm suction pipe length and adjustment range customization, adapting to long-distance sand conveying and different water depths
  • Power mode (diesel or electric) matching the 14-inch size, sand suction intensity, and straight-arm adjustment needs
  • Debris filtering, automatic monitoring, and movable pipeline functions, straight-arm adjustment automation upgrade, adapting to different sediment and water environment needs[1]

Typical Application Scenarios (14-Inch Straight-Arm Jet Suction Dredger)

1. River & Lake Dredging & Desilting

The 14-inch straight-arm jet suction dredger is used for sand suction and desilting in large-sized rivers and lakes, where water levels fluctuate greatly and sediment thickness varies. The straight-arm device can flexibly adjust the suction depth, removing accumulated sediment, improving water depth, restoring water circulation, and preventing waterway silting, with efficiency and scale perfectly matched to such scenarios. It can flexibly adjust to water level changes and uneven sediment distribution, ensuring stable dredging effect[1].

2. Reservoir Desilting & Capacity Restoration

Suitable for large-sized reservoir desilting projects, where sediment thickness varies in different areas and water levels change with seasons. The 14-inch straight-arm jet suction dredger can efficiently extract sediment accumulated at the bottom of reservoirs through flexible straight-arm adjustment, restore reservoir storage capacity, improve water quality, and ensure the normal operation of water conservancy projects. It has strong adaptability to shallow water areas, uneven sediment distribution, and fluctuating water levels, which is the core demand of reservoir desilting[1].

3. Sand Mining & Resource Utilization

Extracts sand resources from rivers, lakes, and coastal shallow zones for construction, road building, and other projects, realizing rational utilization of sand resources. The straight-arm device can adjust the suction depth according to sand layer thickness, ensuring stable and efficient sand extraction. It leverages the 14-inch straight-arm jet suction dredger’s floating adaptability, high sand suction efficiency, and flexible straight-arm adjustment, ensuring stable sand output and meeting large-scale industrial sand demand[1].

4. Port & Waterway Maintenance

Maintains large-sized port basins and waterways, removes sediment and sand accumulated in navigation channels, ensures navigable depth, and guarantees the safe navigation of large-sized ships. The straight-arm device can flexibly adjust to different water depths and sediment thicknesses in port basins and waterways, with flexible operation and high dredging efficiency, adapting to the complex working environment of large-sized ports[1].

5. Artificial Lake & Landscape Water Desilting

Removes sediment and sludge in urban artificial lakes and landscape waterways, improves water clarity, beautifies the water environment, and maintains ecological balance. With the 14-inch straight-arm jet suction dredger’s maneuverability, shallow water adaptability, and flexible straight-arm adjustment, it can efficiently complete desilting tasks without damaging the surrounding ecological environment, and adapt to the fluctuating water levels of landscape waterways.

Advantages Over Similar 14-Inch Jet Suction Dredgers

  1. Higher Efficiency: Integrated continuous operation of straight-arm adjustment, jet breaking and sand suction, tailored to the 14-inch scale and floating mode, the straight-arm device ensures full contact between the suction head and sediment, greatly improving sand suction efficiency compared to ordinary 14-inch jet suction dredgers, sand pumps and fixed sand extraction equipment[1].
  2. Wider Adaptability: Floating positioning design plus flexible straight-arm adjustment (0.6–6.0m range), works in shallow water, narrow channels, areas with uneven sediment distribution, and areas with large water level changes, the 14-inch size’s draft advantage and straight-arm adjustment function make it more adaptable than larger jet suction dredgers and ordinary 14-inch jet suction dredgers without straight-arm[2].
  3. More Durable: 14-inch-specific wear-resistant jet suction sand pumps, anti-corrosion pipelines, anti-fouling hull, and specially treated anti-wear straight-arm suction pipe, longer service life, reducing long-term maintenance costs, with the same durability as professional export dredging equipment.
  4. Smarter Operation: Simple control, low labor intensity, single-person operation available, real-time monitoring of straight-arm height and other key parameters, one-key straight-arm adjustment, reducing manpower cost for 14-inch straight-arm jet suction dredger operation.
  5. More Environmentally Friendly: No secondary pollution, low noise, suitable for ecological protection areas and urban environments, meeting modern environmental protection requirements for dredging projects; the straight-arm adjustment can avoid excessive suction of water and reduce impact on water ecology.
  6. More Flexible Function: Can be used for sand suction, dredging, desilting, and channel improvement, the straight-arm device expands its application scope in fluctuating water levels and uneven sediment areas, one 14-inch straight-arm jet suction dredger replaces multiple single-function sand extraction and dredging equipment, with flexible deployment and strong adaptability[1].

Quality Assurance & After-Sales Service

  • Full-process production supervision and factory commissioning test for the 14-inch straight-arm jet suction dredger, especially for the straight-arm adjustment mechanism and jet suction system, ensuring each vessel meets quality standards and straight-arm jet suction dredging operation requirements, similar to the strict quality control of export dredging equipment.
  • Complete operation manual, certification, and quality inspection report for the 14-inch straight-arm jet suction dredger, including straight-arm device, jet suction system, and positioning device operation guidelines.
  • 6–20 months warranty for non-human damage, covering all key components of the 14-inch straight-arm jet suction dredger (including jet suction sand pump system, high-pressure jet device, straight-arm adjustment mechanism, power system, and conveying pipeline).
  • Professional on-site installation, commissioning, and operator training for the 14-inch straight-arm jet suction dredger, focusing on jet suction operation, straight-arm adjustment skills, sediment adaptability, and maintenance of the straight-arm device.
  • Global delivery and long-term after-sales parts supply for the 14-inch straight-arm jet suction dredger, especially for the straight-arm device and its accessories, ensuring timely maintenance of the jet suction system and straight-arm mechanism, providing global service like professional export dredging equipment manufacturers.

Conclusion

As a core equipment for large-scale sand extraction and waterway dredging with unique straight-arm function, the 14-Inch Straight-Arm Jet Suction Dredger integrates high efficiency, stability, environmental protection, and multi-purpose performance, with specifications and functions perfectly matched to the 14-inch scale and straight-arm jet suction dredging characteristics[1][2]. The unique straight-arm adjustment mechanism breaks through the limitations of ordinary jet suction dredgers and fixed sand extraction equipment, enabling it to freely operate in various water environments, adapt to dynamic water level changes and uneven sediment distribution, and flexibly adjust the suction depth according to on-site conditions. It is widely used in river dredging, lake desilting, reservoir maintenance, port improvement, and sand mining projects. It helps customers improve waterway navigability, restore water storage capacity, rationalize sand resource utilization, and reduce long-term management costs. It is an ideal choice for modern large-scale water conservancy dredging and sand extraction projects, serving as a reliable floating straight-arm jet suction dredging solution.
